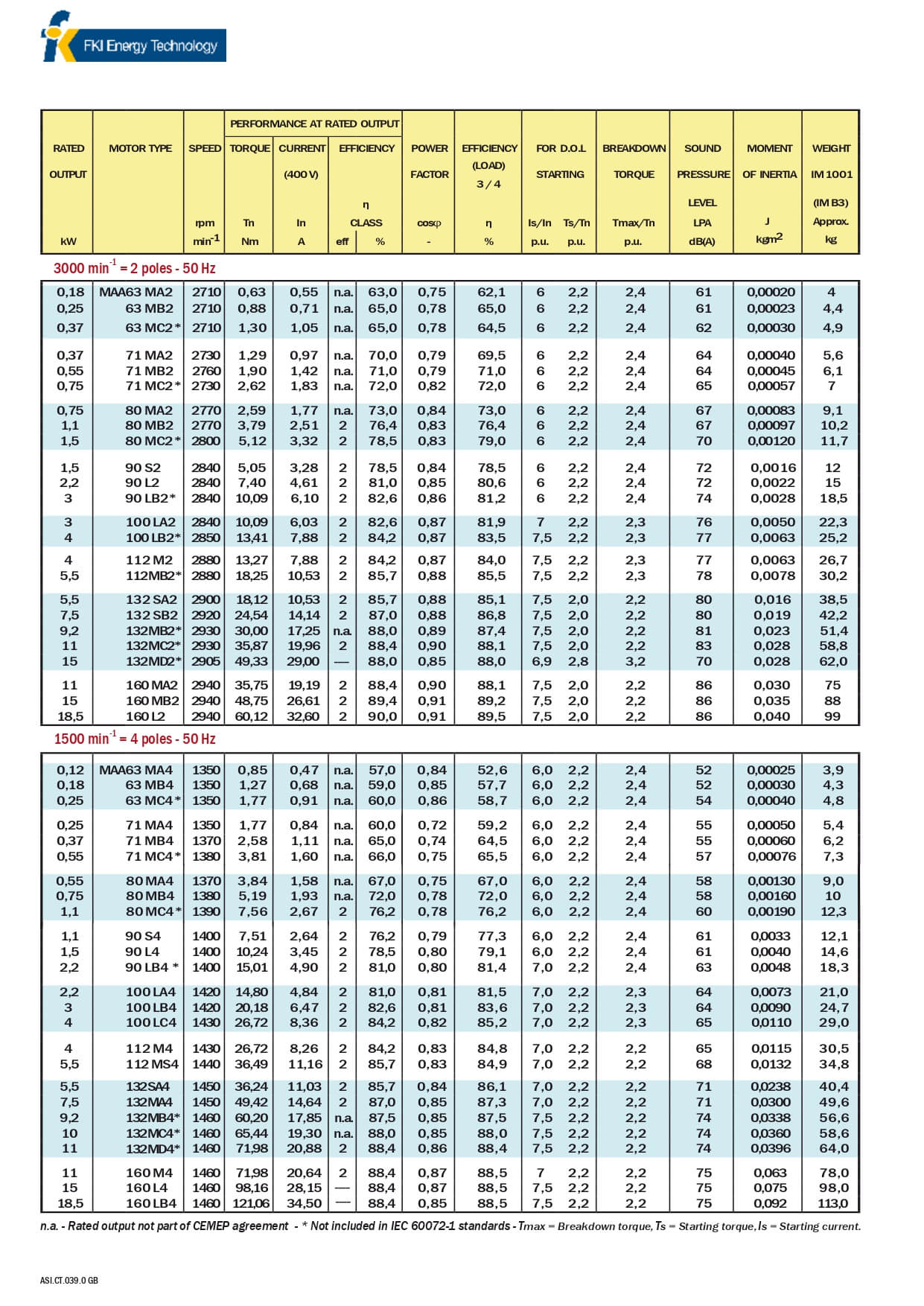

Rated Output

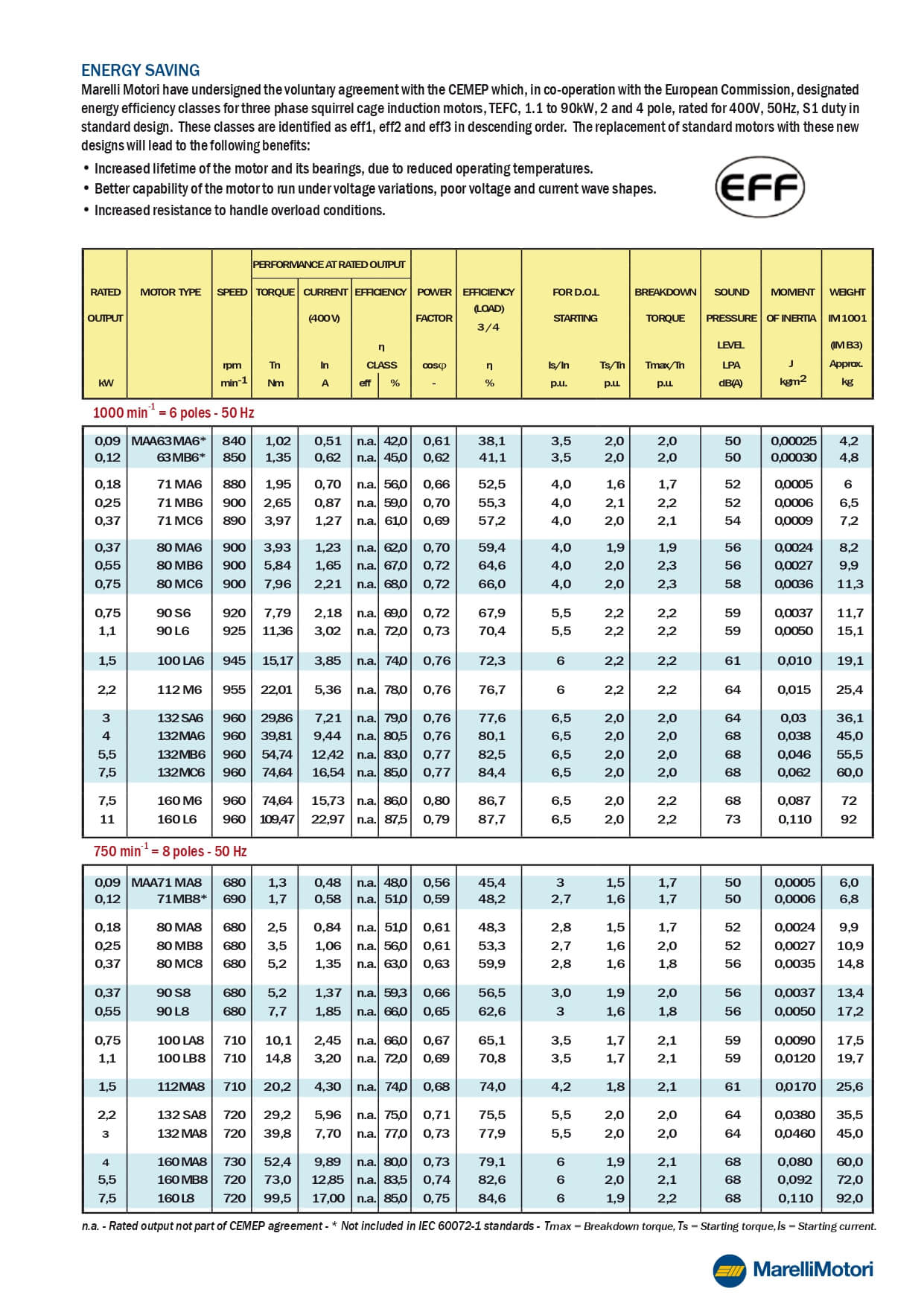

Energy Saving

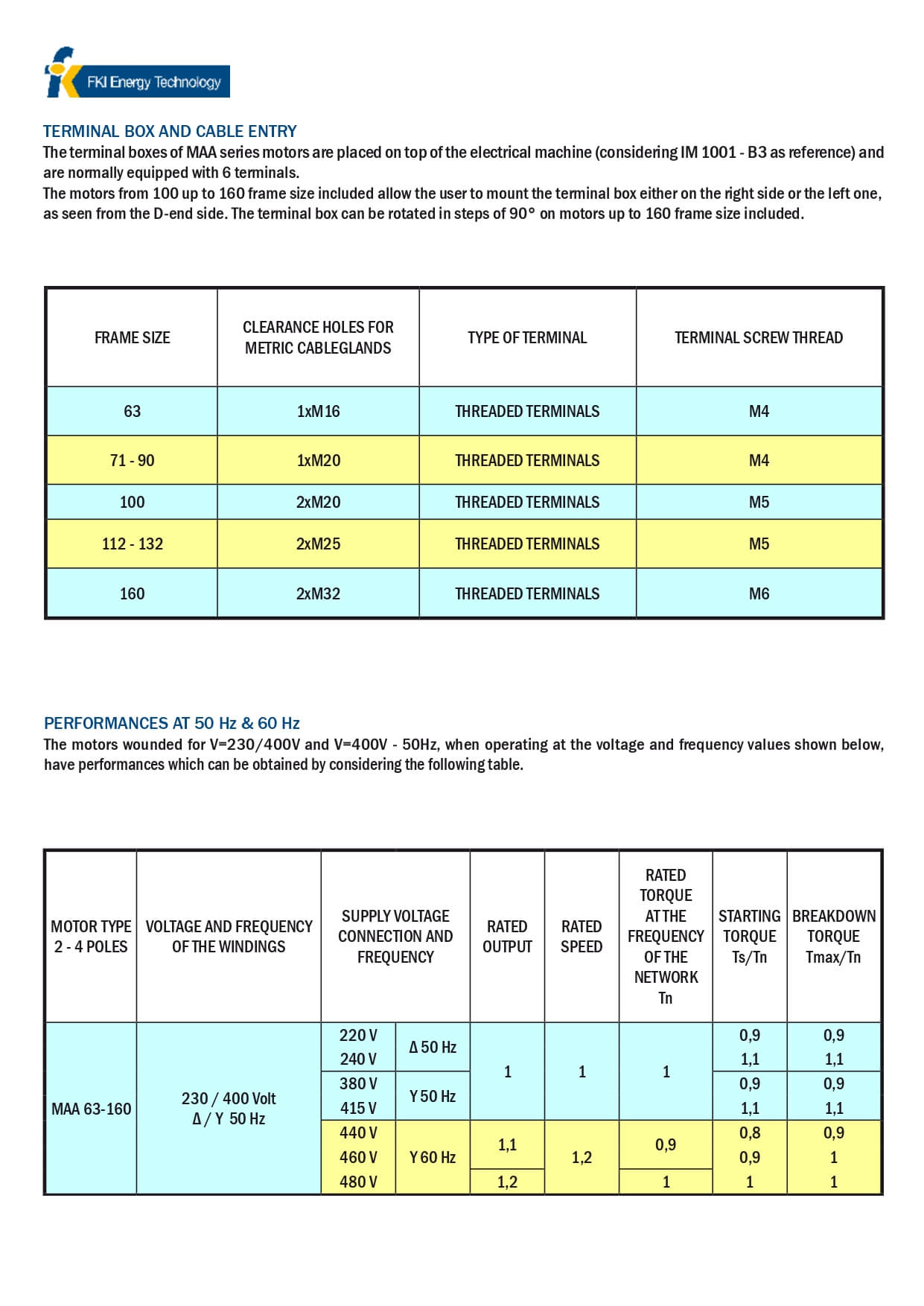

TERMINAL BOX AND CABLE ENTRY
Electric Motors, MARELLIMOTORI

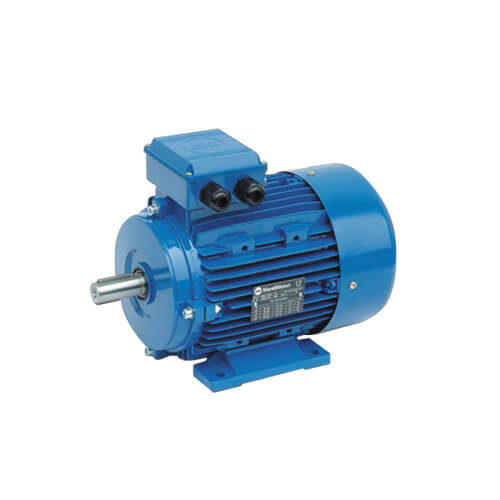

MARELLIMOTORI Three Phase Squirrel Cage Induction Motors – MAA SERIES

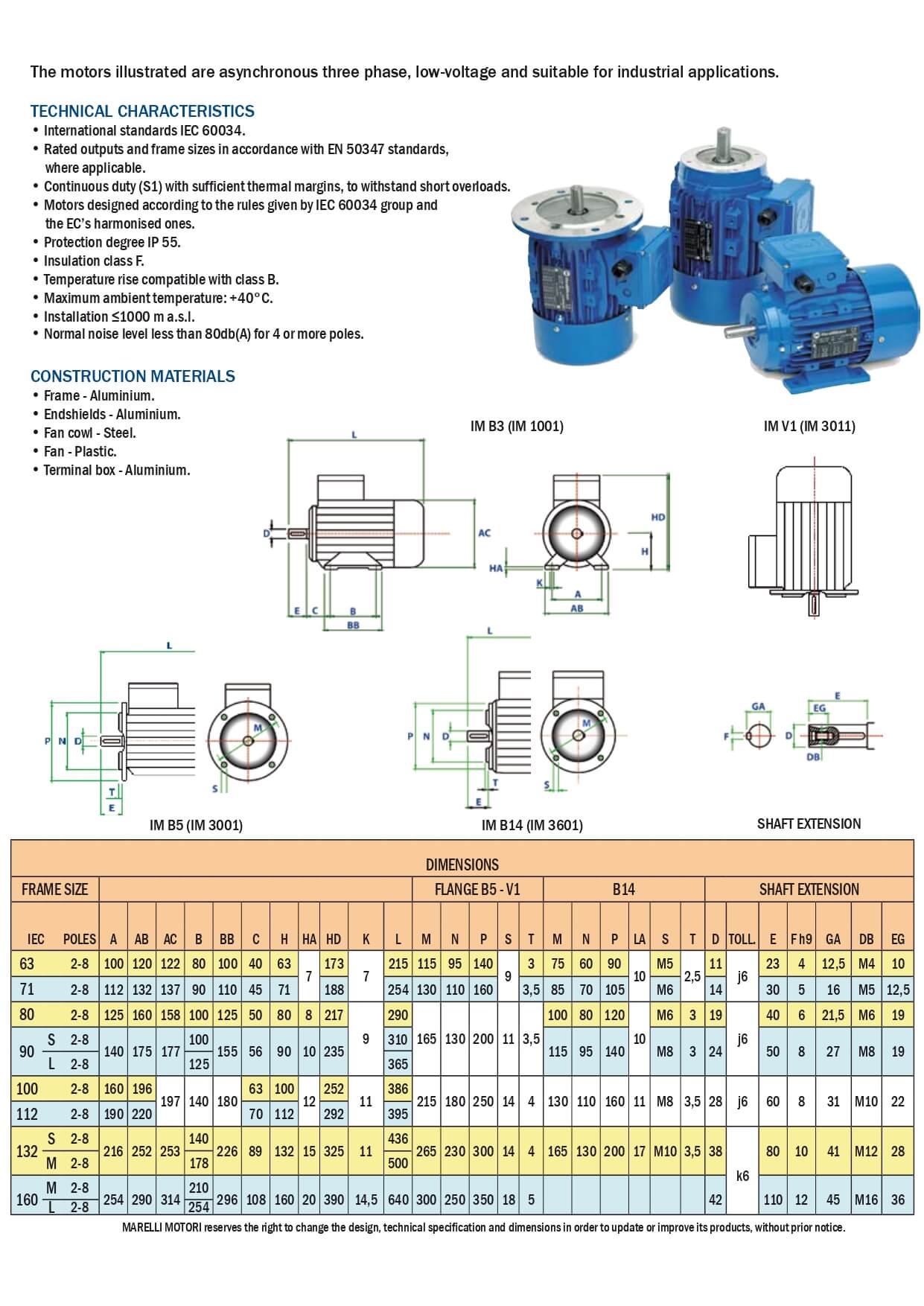

The motors illustrated are asynchronous three phase, low-voltage and suitable for industrial applications.
TECHNICAL CHARACTERISTICS
- International standards IEC 60034.
- Rated outputs and frame sizes in accordance with EN 50347 standards, where applicable.
- Continuous duty (S1) with sufficient thermal margins, to withstand short overloads.
- Motors designed according to the rules given by IEC 60034 group and the EC’s harmonised ones.
- Protection degree IP 55.
- Insulation class F.
- Temperature rise compatible with class B.
- Maximum ambient temperature: +40°C.
- Installation ≤1000 m a.s.l.
- Normal noise level less than 80db(A) for 4 or more poles.
Construction Materials
- Frame – Aluminium.
- End shields – Aluminium.
- Fan cowl – Steel.
- Fan – Plastic.
- Terminal box – Aluminium.
