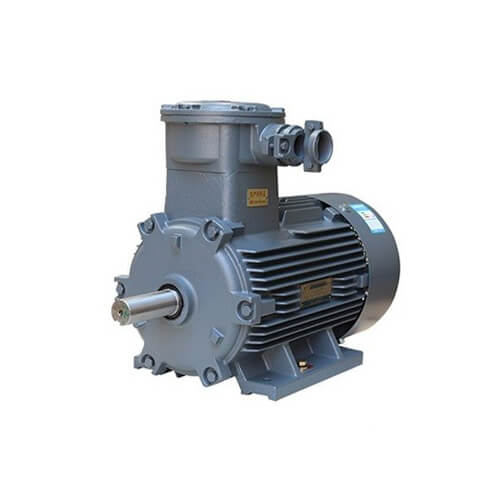

TECO Exd IICT4 Flameproof Motors

Brand: TECO
Type: TECO Exd IICT4 Flameproof Motors
Exd IICT4,Exd II(H2),IE3

Class:
Flameproof Three phase induction motors
Design standard: GB3836.1,GB3836.2,JB/T7565.1
Rated voltage: 380V or other voltage
Rated frequency: 50Hz or 60Hz
Output range: 0.18KW~315KW
Time duty: Continuous SF 1.0 or (SF1.0~1.3))
Frame Nos: 80M~355L
Protection enclosure: Exd IICT4 Gb(F#80~255);Exd II(H2)
Gb(F#250~355) IP54、IP55、IP56、IP65、IP66
Cooling method: Self external fan, Surface cooling (IC411)
Stator insulation: Class F insulation system
