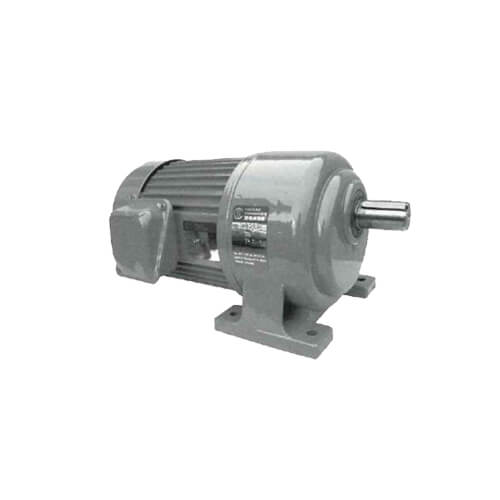

CHINSUNG TRANSMISSION – CSH (Horizontal) Type Dimensions

The selection table is for standard motor (low voltage 3-phase fully-enclosed induction motor, E class insulation). But it is exclusive for the conditions of frequent starting, variable loading or impact loading etc.

KW required by the motor shall be decided from the calculation of: Necessary loading torque/Reducing efficiency

  • The reducing efficiency of 2-stage reducer is 95%, and the reducing efficiency of 3-stage reducer is 92%.
  • Necessary loading torque, if the change loading is indicated by its equivalent value or if loading Change cycle is unclear, please use the maximum torque.
  • In general, start torque won’t be considered.
