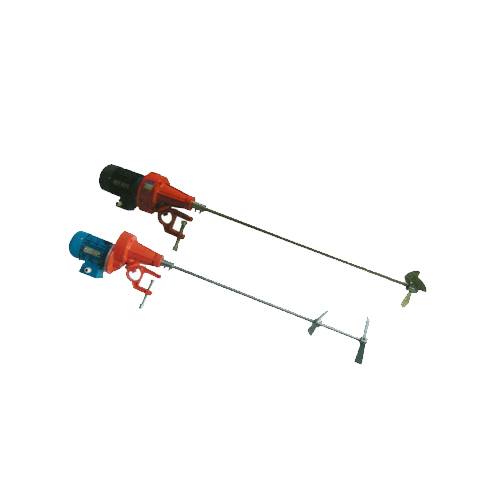

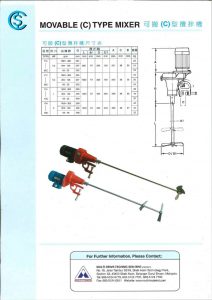

CHINSUNG TRANSMISSION – Movable (C) Type Mixer

The selection table is for standard motor (low voltage 3-phase fully-enclosed induction motor, E class insulation). But it is exclusive for the conditions of frequent starting, variable loading or impact loading etc.

KW required by the motor shall be decided from the calculation of: Necessary loading torque/Reducing efficiency

  • The reducing efficiency of 2-stage reducer is 95%, and the reducing efficiency of 3-stage reducer is 92%.
  • Necessary loading torque, if the change loading is indicated by its equivalent value or if loading Change cycle is unclear, please use the maximum torque.
  • In general, start torque won’t be considered.

Features

Reduction Gear

MOTOR KW SELECTION TABLE TORQUE CURVE DRAWING

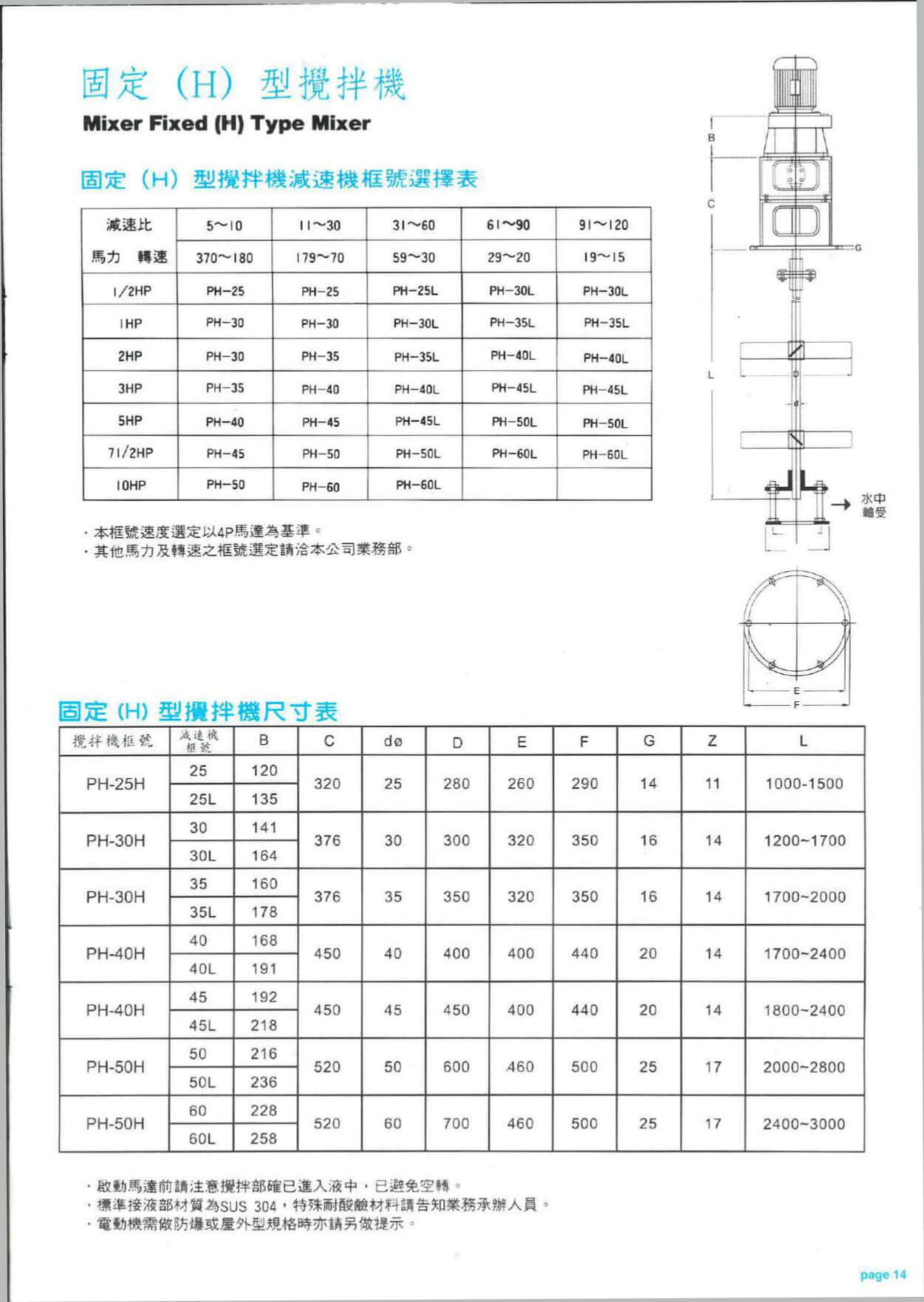

Mixer Fixed (H) Type Mixer

Twist Curve Diagram for Motor kw Selection

Downloads

CHINSUNG TRANSMISSION
Chinsung Transmission.pdf
