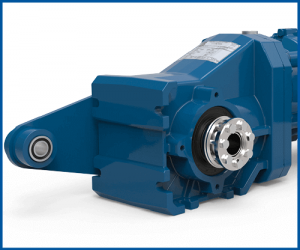

Helical Bevel Geared Motors K

Helical bevel gear units are suitable for a multitude of applications. The two-stage basic design is extended by a third gear stage upward of 200 Nm. K gear units can also be equipped with a hollow shaft, output shaft, shrink disc, torque arm and mounting flange.

Categories: ,

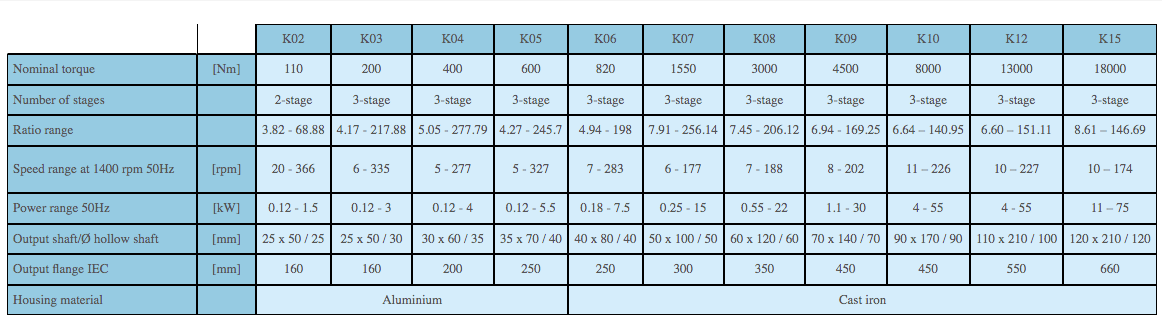

Technical Data

Design Versions

Hollow Shaft

Output Shaft


Shrink Disc And Torque Arm


WG20 – Geared Motors Up to 18,000 Nm
WEG wg20 geared motors up to 18,000 Nm.pdf
