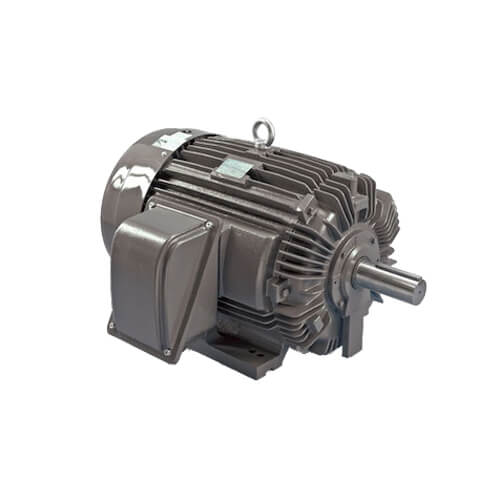

TECO NEMA General Purpose Motors

Brand: TECO
Type: AEHH/AEUH
NEMA Premium,CE、CSA、UL。

TECHNICAL DATA
Class: Three phase induction motors
Design standard: NEMA MG-1,MG-13,IEEE-841
Rated voltage: 220/380V or other voltage
Rated frequency: 50Hz or 60Hz
Output range: 0.75KW~260KW
Time duty: Continuous S.F1.15 or (SF1.0~1.3))
Frame Nos: 143T~449T
Protection enclosure: Totally enclosed (IP54、IP55)
Cooling method: Self external fan, Surface cooling (IC411)
Stator insulation: Class F insulation system
