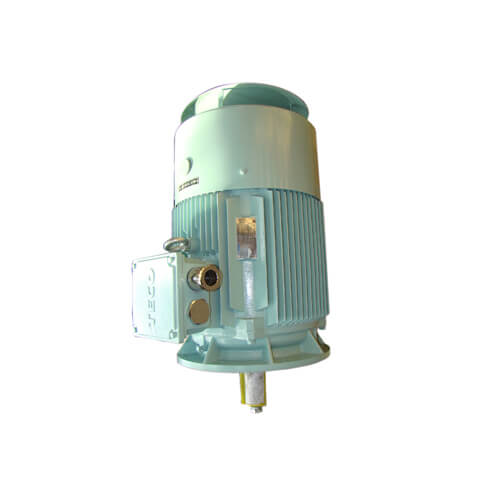

TECO Marine Series Motors
Brand: TECO
Type: AEEVBT/AEUVBT
According to GB/T 7060, the Specification rotary electrical machine in ships, all types of product approvals are carried out by Marine Inspection Bureau, reaches the standards of ABS, BV.DNV, GL, KR.LR, NK, CCS and requirements of the relevant Classification Clause.
Class: Marine Series Three phase induction motors
Rated voltage: 380V or other voltage
Rated frequency: 50Hz or 60Hz
Output range: 0.18KW~315KW
Time duty: Continuous SF 1.0
Frame Nos: 80M~355L
Protection enclosure: IP55
Cooling method: Self external fan, Surface cooling (IC411)
Stator insulation: Class F insulation system
