Applications
Vibrating machines for transport and sieving, fluid beds, compaction tables and foundry shake out
Industrial Vibrators, Vibrators

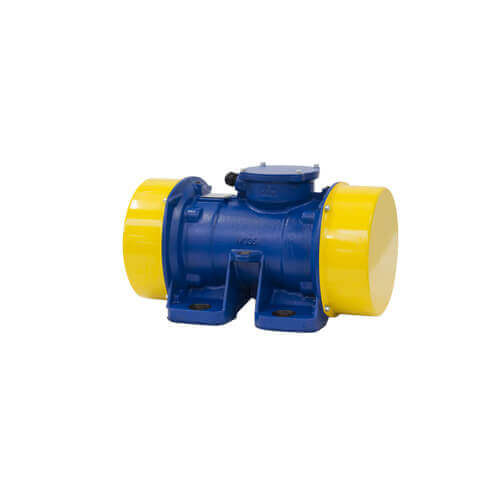

OIL – VISAM Electric Motovibrators Range
Visam identify the most optimal solution starting from the technical and applicational necessity of the customer.
Power supply: Three-phase from 42 up to 700 V at 50 and 60 Hz; Single-phase from 110 up to 240 V at 50 and 60 Hz.
Excellent performance under inverter control (VFD)
Time rating: Continuous at maximum Centrifugal Force (S1)
Range: 2, 4, 6, 8, 10, 12 poles & specials
Features
- Power supply: Three-phase from 42 up to 700 V at 50 and 60 Hz; Single-phase from 110 up to 240 V at 50 and 60 Hz.
- Time rating: Continuous at maximum Centrifugal Force (S1)
- Impact protection: IK 10
- Mechanical protection: IP 66
- Insulation class: F standard, H on request
- Coating colour: Powder coated blue RAL 5010 (body) / yellow RAL 1003 (mass covers)
- Installation and operating environment: From –20° up to +40° C
- Thermal protection: Standard (thermistor 130°C) from size 10. Up to size 9 on request
- Centrifugal force: From 30 kg up to 22.800 Kg. Continuous adjusting from 100% to 20% (standard supply: setting at 80%)
- Range: 2, 4, 6, 8, 10, 12 poles & specials
Advantages
- Standard tropicalization
- Lubrication “Greased for life” up to size 4. Long life span greasing from size 4.1 upwards.
- Whichever position of mounting
- All units are tested by VISAM, they undergo a dynamic test-run (with unbalanced weights) before leaving the factory
Certifications
- CE
- Atex ExII3D
