Applications
Vibrating machines in general. Vibrating screens, conveyors and vibrating extractors, compaction tables, foundry diggers, fluid beds, spiral elevators.
Industrial Vibrators, Vibrators

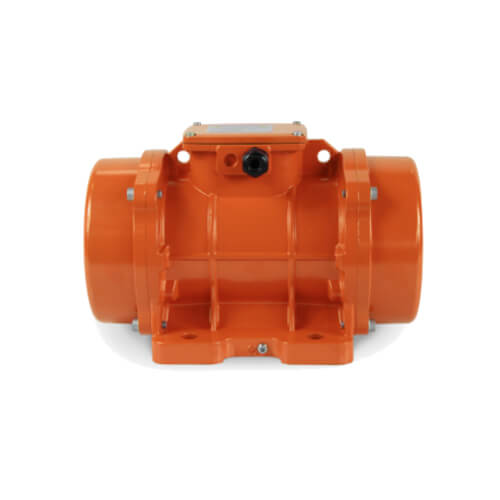

OIL – MVE Standard Range
Electric vibrating motors (MVE) for general applications in various industrial sectors on machines and vibrating tables. Available in 2, 4, 6 and 8 poles, as well as in direct current with different voltages, they are suitable for use with inverters (variable frequency drive) and have a centrifugal force ranging from 20 to 30,000 kg, adjustable on each individual model.
Features
- Centrifugal force: 20 ~ 26,000 kg
- Voltages 12 and 24 VDC, from 220 to 690VAC
- Windings impregnated under vacuum with class F insulating materials
- Optimized design and components for demanding applications.
Advantages
- Greased for life = Zero maintenance *
- Wide range of centrifugal forces for all applications
- Different voltages available for global applications
* for special applications contact our technical service
Certifications
- ATEX Ex II2 D and ETL, Class II, Division 2
Accessories
- Standard PTC from size 60 (available on request for smaller sizes)
- Half-Split covers for quick mass adjustment – on request from size 60
- Stainless steel covers on request from size 23
- Anti-corrosion painting for ” food ” applications
- Extended motor shaft for connection of multiple units with mechanical coupling
Download
Application Mapping Chart
applicationMappingChart_NEW.pdf
OLI Company Profile
CCOEN_2021_rev02-web.pdf
Made in OLI
MadeInOli_2018.pdf
Catalog Industrial Vibrator
Cat_IndustrialVibr_CIV_EN_0122_rev23-5.pdf
2 Side Brochure – Motovibrators and Flowaids
