Applications

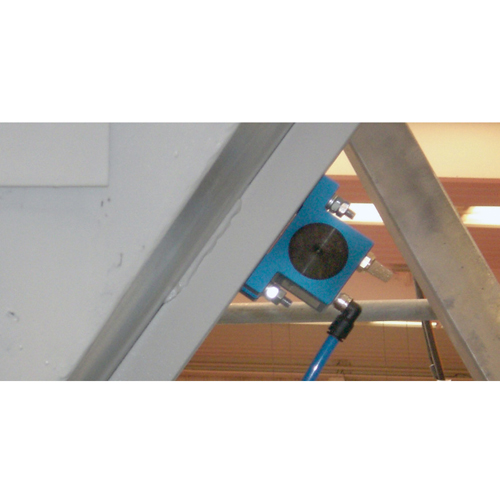

They are particularly efficient when used with fine powders and small-sized, non-wet granular materials.
Flow Aids, Vibrators

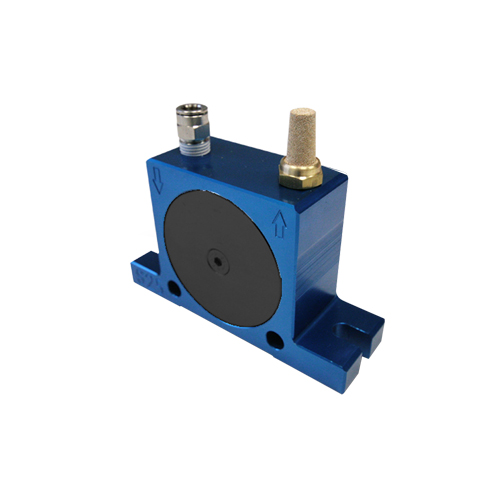

OIL – S – Pneumatic Rotational Vibrator – Ball
The OLI “S” series pneumatic rotational vibrators generate high frequency vibration thanks to a steel ball that rotates inside two housings made of hardened and ground steel.
Features
The S series requires lubricated air at a working pressure from 2 to 6 bar (29 ~ 87 PSI).
At maximum speed, the noise does not exceed 90 dB (A).
They are designed to be used in outdoor applications, for this reason the body is made of blue anodized aluminum while covers are in Ixef®, a particular plastic material with high resistance to atmospheric agents and harsh working conditions.

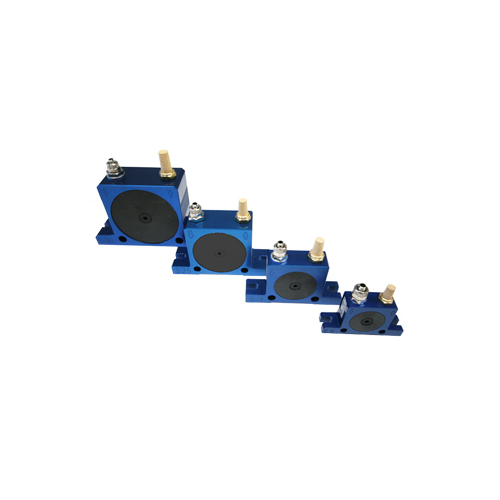

The S series is composed of eight different sizes of vibrators.
Advantages
- Easy to install
- Low air consumption
- Excellent quality/price ratio
Certifications
The S series pneumatic vibrators are designed and built according to the following standards UNI EN 13463-1 – EN 13463-5 – ISO 14121 – UNI EN 1127-1 and comply with the 2014/34 / UE directives.
They are certified ATEX II 2D c Tx – II 2G c Tx to be used in potentially explosive environments.
